Single Phase Simplex Pump Control Panel, 120/208/240V, NEMA 4X, UL Listed

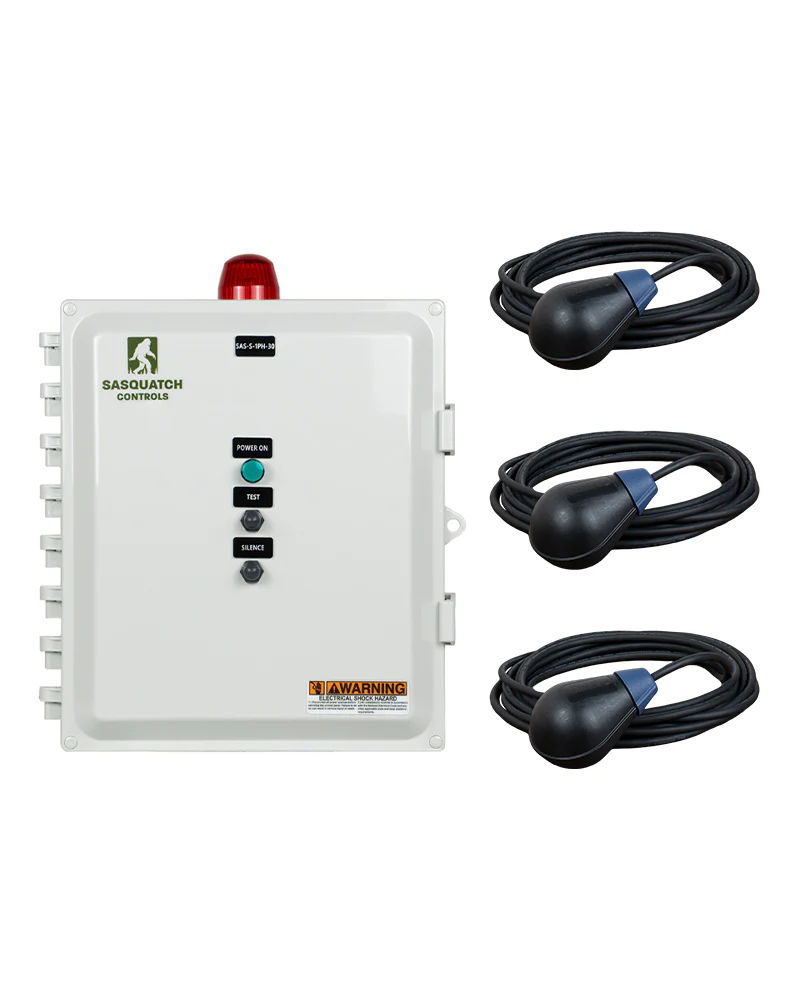

The Sasquatch SAS-S-1PH is a single phase control panel designed for use with one pump, rated for 120/208/240 VAC up to 25.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker, pump run light, alarm buzzer, 360-degree red beacon alarm light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.
Features
- NEMA 4X enclosure: 12”x 10”x 6”
- 120/208/240V, single phase, 0.0-25.0 FLA
- Motor circuit breaker
- Motor contactor
- Control circuit breaker
- Pump hand-off-auto toggle switch
- Pump run light
- Alarm test and silence button
- 360-degree red beacon alarm light
- Alarm buzzer sounds 85 decibels at 10’
- Includes three normally open mechanical floats with 20’ leads
- UL listed with two-year limited warranty
Original: $681.45
-70%$681.45
$204.44
Description
The Sasquatch SAS-S-1PH is a single phase control panel designed for use with one pump, rated for 120/208/240 VAC up to 25.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker, pump run light, alarm buzzer, 360-degree red beacon alarm light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.
Features
- NEMA 4X enclosure: 12”x 10”x 6”
- 120/208/240V, single phase, 0.0-25.0 FLA
- Motor circuit breaker
- Motor contactor
- Control circuit breaker
- Pump hand-off-auto toggle switch
- Pump run light
- Alarm test and silence button
- 360-degree red beacon alarm light
- Alarm buzzer sounds 85 decibels at 10’
- Includes three normally open mechanical floats with 20’ leads
- UL listed with two-year limited warranty
